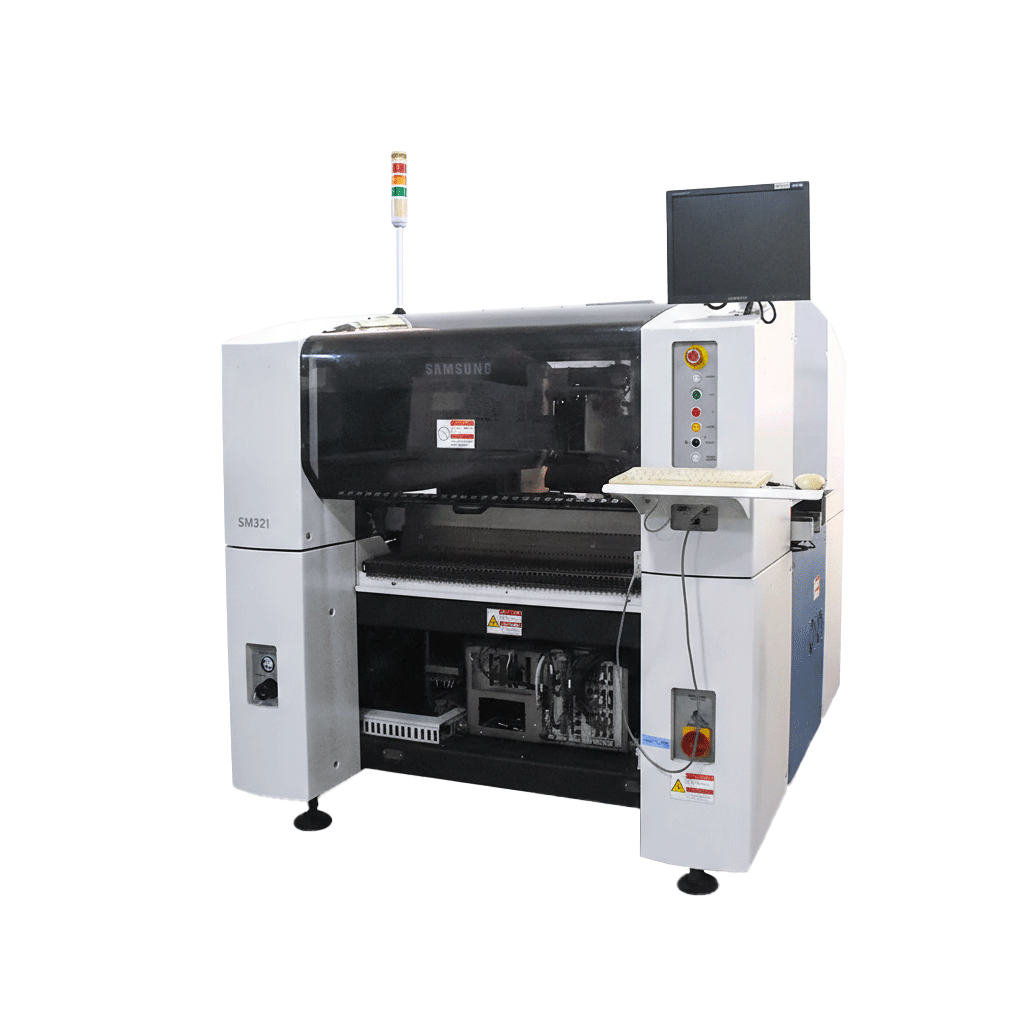

Model: SM321 Samsung
Category: Pick and Place
Condition: refurbished
Location: Italy – Padua
_______________________________
Specifications
-
- Full Vision Mounter 21k cph
- Vintage 2007
- Fully Overhauled & Re-Painted
- Large PCB Size 610mm x 400mm
- 01005 ~ 22mm Square by Flying Vision Alignment 01005 camera fitted
- 0.4mm Lead pitch @ 32mm Square using Vision Alignment
- 0.3mm Lead pitch camera included
- BGA/CSP/uBGA by Vision Alignment
- Feeder Capacity up to 120 x 8mm Feeders
- IPC rated speed of 21’000cph (IPC9850 1608Chip)
- Full set of nozzles to cover all component types
- Large Component Library as Standard with more than 1’800 component types
- CAD Import facility as standard
- Robust & Highly reliable Machine, fully supported by Elite 7 Installations Ltd.
- Small Footprint for this Industrial Machine
Additional Features:
-
-
- Takes Standard Easy to use SM Clamp Feeders, colour coded for ease of identification
- SMART Feeders can also be used (loading small strips, auto loading, auto splicing)
- Great addition to any Existing line to add capacity or fine pitch
- Machine will be fully overhauled by our Experts
- Warranty offered and fully supported by Elite 7 Installations Ltd.
- Latest Software will be loaded
- Fully tested & rebuilt
-
