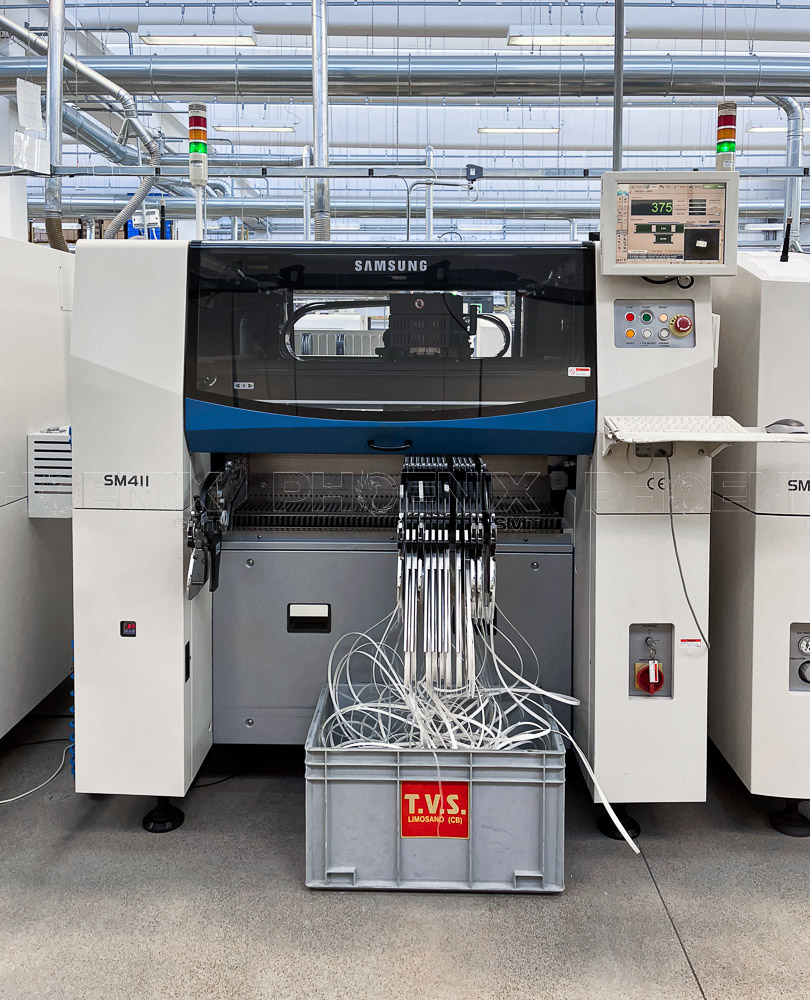

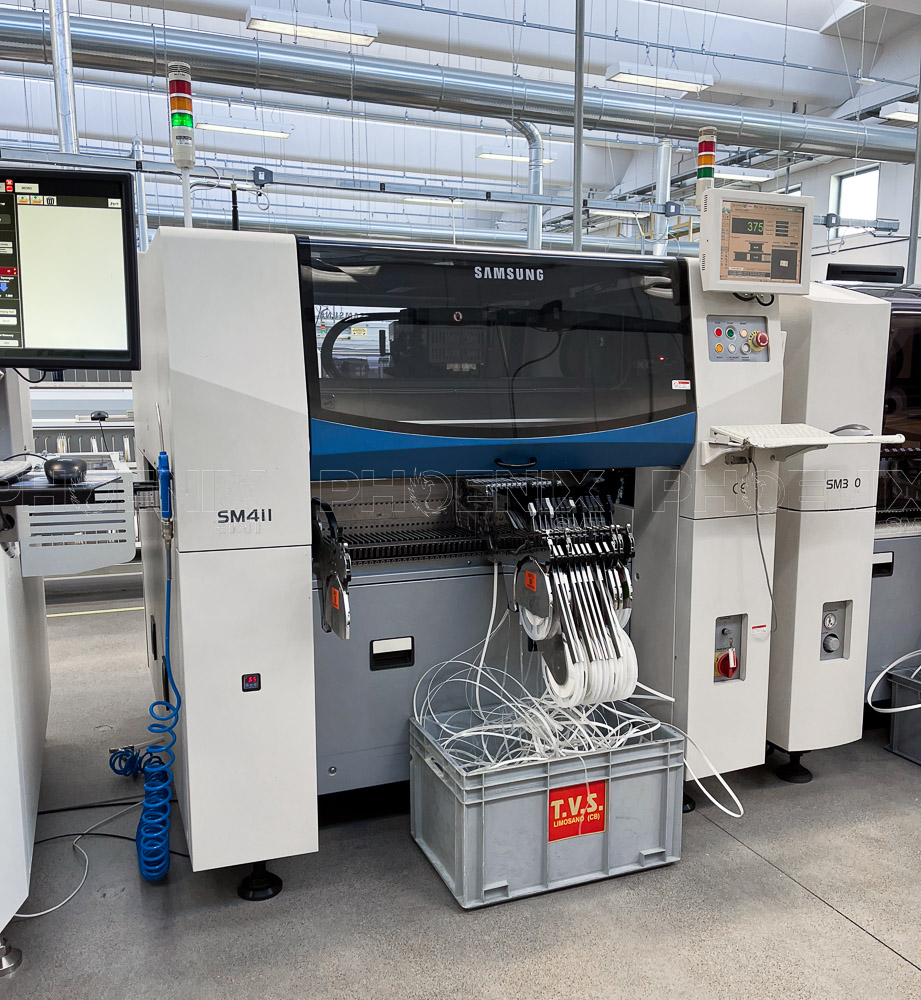

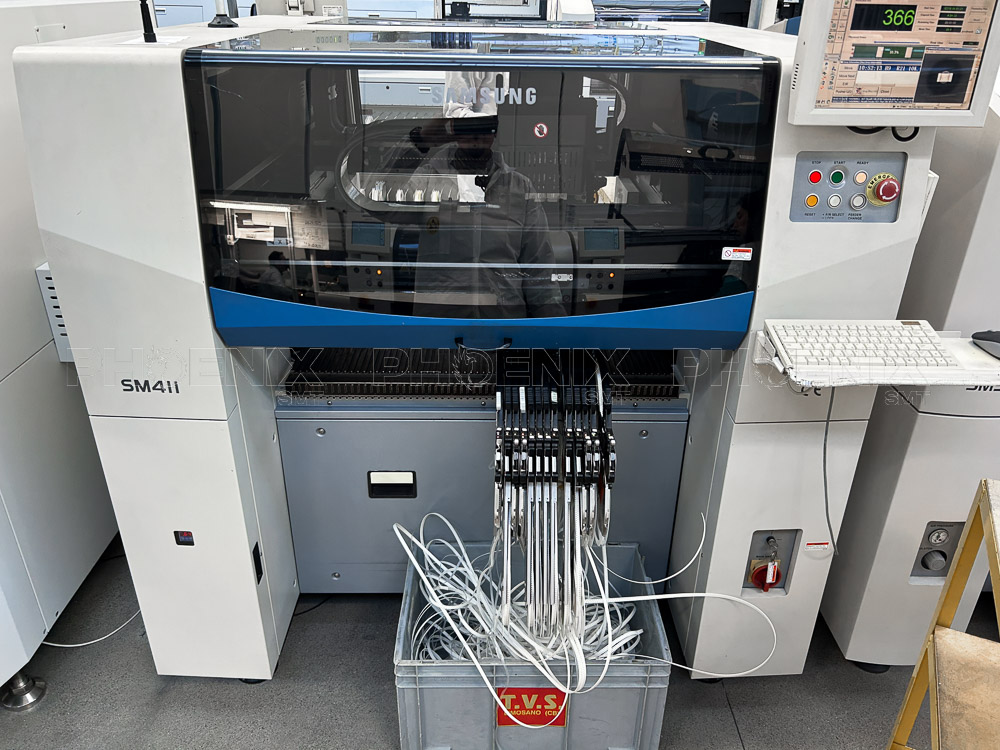

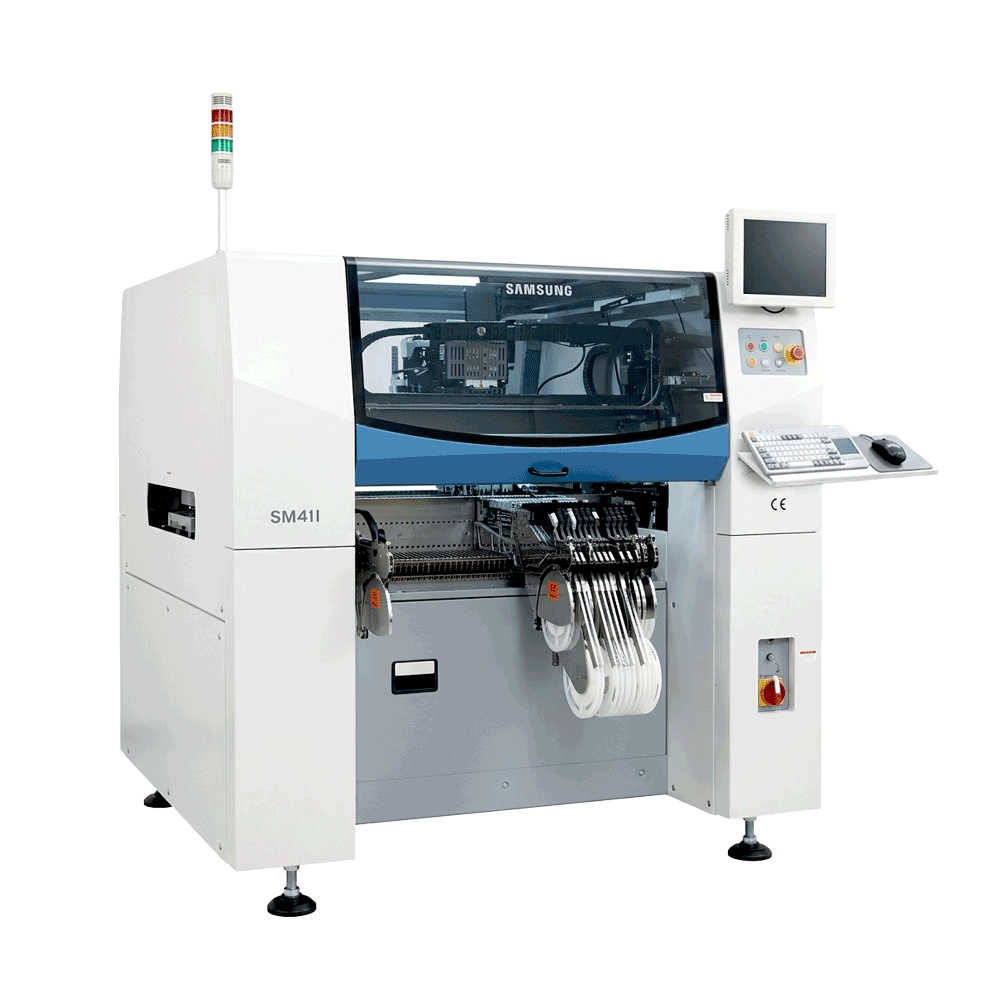

Model: SM411 Samsung
Category: Pick & Place
Condition: refurbished
Location: Italy – Padua
_______________________________
Specifications
- Parallel dual-track, PCB handling time 0 seconds
- Very low material loss rate: two ten thousandths
- Samsung’s unique flight-centered recognition system (Fly Vision)
- Feeder component position automatic identification function
- Advanced flat wire structure
- Anti-static ESD nozzle
- New non-stop feeder
- PM Manager Management Features:
- IPC9850 standard can mount 42,000CPH (Chip 1608)
- Dual Manipulator Drive System (12 heads)
- In flight recognition system of images
- Y-axis dual servo motor drive system
- Bilateral standard feeder base
- Can be installed 120 8mm belt feeders
- Reference point recognition camera
- Automatic nozzle replacement device
- Color LCD
- Double rail transfer system
- Rail width automatically adjust
- PCB edge clamping device
- Feeding process tracking sensor
- Windows XP operating system
- Order and feed sorting automatic optimization program
- A standard nozzleSamsung SM411 parameters
- To the way the flight vision
- Number of Spindles 6 Spindles x 2 Gantry
- Mounting Speed Flying Vision Chip 1608
- SOP 42,000 CPH (IPC9850)
- 30,000 CPH (IPC9850)
- Mounting accuracy Chip ± 50 μ @ 3σ / Chip
- (Based on the standard chips)
- Narrow pitch mounting 0.1mm (0603) / 0.15mm (1005)
- Components range of 0603 ~ □ 14mm Chip, QFP, BGA
- (Option: 0402 Please contact us. The more information will be available upon your request.)
- Minimum pin pitch (QFP)
- Minimum ball pitch (BGA) 0.5mm (QFP) / 0.65mm (BGA)
- The maximum height H = 12mm
- Board Size (mm) Min 50 (L) x 40 (W)
- Maximum 510 (L) x 460 (W)
- (Single Lane Mode, 460 (L) Excess: No Buffer)
- 460 (L) x 250 (W) (Dual Lane Mode)
- 610 (L) x 460/250 (W) (Option)
- PCB thickness 0.38mm ~ 4.2mm
- Number of feeders 120ea / 112ea (Feeder changer)
- Power Consumption Power consumption AC200 / 208/220/240/380/415 V (50 / 60Hz, 3Phase)
- Max. 5.0kVA
- Air consumption of 0.5 ~ 0.7MPa (5.1 ~ 7.1kgf / cm2), 300N? / Min
- Weight 1,820kg
- Dimensions (mm) 1,650 (L) x 1,690 (D) x 1,535 (H)
